TX-2AMF-SS

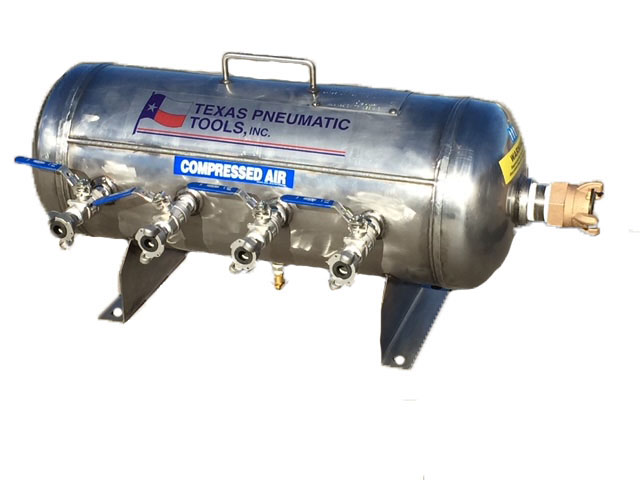

Stainless Steel Air Manifold (15 Gallon, ASME Tank)

• 15 Gallon Air Manifold (ASME Tank)
• 2" - 4 Prong (Bull Hose) Inlet Coupling
• 8 outlets w/ 3/4" Ball Valves & Crow Foot Couplings
• 200 psi Pressure Relief Valve
• Drain Valve on Bottom of Tank
• Pressure Gage w/ Plastic Cover
• Units can be linked together by replacing the square plug with a hose coupling

The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of air to supply various pneumatic tools simultaneously. Specifications:

• Weight = 73 lbs.
• Height = 18"
• Length = 34.5"
• Tank Diameter = 12"
• Width w/ Fittings = 22"
• Inlet Size = 2"
• Size of Outlets = 3/4"
• Working Pressure = 200 PSI
• Test Pressure = 300 PSI
• Boxed Weight = 84 lbs.
